How Mirpur Stadium Dries Its Field in Just 18 Minutes After Rain

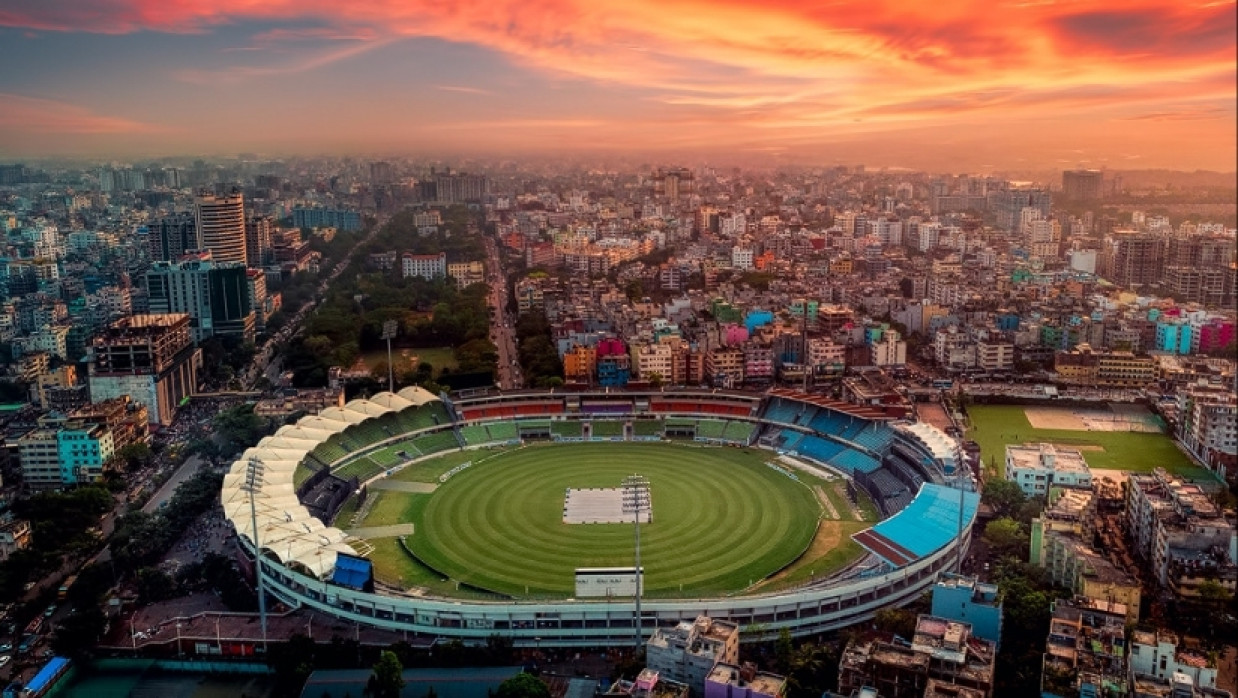

The Sher-e-Bangla National Cricket Stadium in Mirpur, known as the 'Home of Cricket' in Bangladesh, boasts an incredible ability to dry the outfield within 18 minutes of rain stopping and resume play within half an hour. This "magical" drainage system is a result of world-class sub-surface engineering and meticulous architectural design. Based on insights from Architect Masudur Rahman, here is a breakdown of the technical brilliance behind this world-renowned system.

The Four Pillars of the Mirpur Drainage System

The efficiency of this system is built upon four foundational engineering principles:

1. Sub-Surface Engineering: Advanced engineering of the underground layers.

2. Sand-Based Turf Construction: A specialized sand-dominated surface.

3. Ground Slope Design: A precise gradient across the field.

4. Rapid Water Evacuation: A high-speed water removal network.

When the stadium was converted from a football and athletics venue into a dedicated cricket stadium, the original red clay soil—notorious for retaining water—was excavated to a depth of nearly three feet. This was replaced with a sophisticated multi-layered base consisting of rock chips, gravel, and engineered sand. Unlike clay, these layers allow water to percolate downward almost instantly.

While the field appears flat to the naked eye, it actually features a deliberate 29-inch slope from the center pitch toward the boundaries. This gradient ensures that water never pools near the playing area; instead, gravity pulls surface water toward the edges of the field through the grass, even before it hits the underground pipes.

The most critical component lies hidden beneath the surface: a vast network of PVC perforated pipes arranged like a spider's web. These pipes have thousands of tiny holes. As rainwater filters through the grass and sand layers, it enters these holes and is immediately channeled away into the main drainage lines outside the stadium. This ensures that while fans see a wet surface, the water is already being evacuated from underneath.

The efficiency of this system has garnered international acclaim. During the 4th day of the last Test match against Pakistan, spectators and experts alike were expecting a total washout due to heavy downpours. However, the ground was ready for play in record time, earning praise from across the cricketing world.

Similarly, the New Zealand coaching staff expressed their disbelief during a recent tour of Bangladesh after witnessing a similar transformation. "Never seen anything like it to be honest. It was like a lake out here an hour ago, wasn't it? Yeah, it's pretty impressive stuff," one of the staff members remarked, highlighting how the "lake-like" conditions vanished within the hour.

The technology is complemented by the exceptional skill of the ground staff and the use of 'Super Soppers.' These machines quickly remove moisture from the top blades of the grass that the drainage system cannot reach. The combination of world-class engineering and the tireless manual efforts of the groundsmen makes Mirpur’s drainage system one of the most efficient in the cricketing world.
